24v EC centrifugal blower fans
Blower Features
Brand name: Wonsmart
High pressure with dc brushless motor
Blower type: Centrifugal fan
Voltage: 24vdc
Bearing: NMB ball bearing
Type: Centrifugal Fan
Applicable Industries: Manufacturing Plant
Electric Current Type: DC
Blade Material: plastic
Mounting: Ceiling Fan
Place of Origin:Zhejiang, China
Voltage: 24VDC
Certification: ce, RoHS, ETL
Warranty: 1 Year
After-sales Service Provided: Online support
Life time(MTTF): >20,000hours (under 25 degree C)
Weight: 80grams
Housing material:PC
Unit size: D70mm *H37mm
Motor type:Three Phase DC Brushless Motor
Outlet diameter: OD17mm ID12mm
Controller: external
Static pressure: 6.8kPa

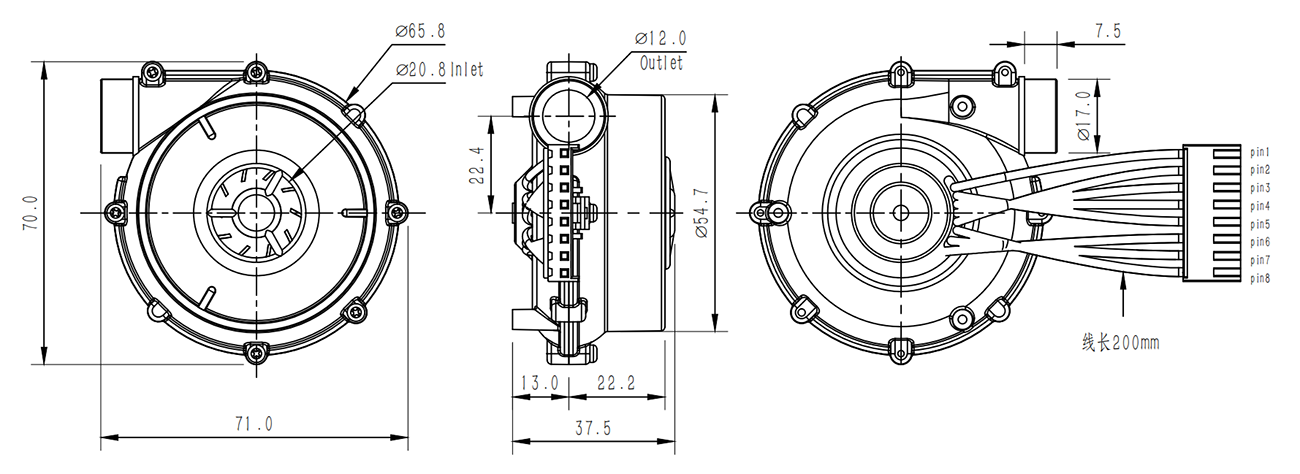

Drawing
Blower Performance
WS7040-24-V200 blower can reach maximum 22m3/h airflow at 0 kpa pressure and maximum 6.8kpa static pressure. It has maximum output air power when this blower run at 3kPa resistance if we set 100% PWM. It has maximum efficiency when this blower run at 5.5kPa resistance if we set 100% PWM. Other load point performance refer to below P-Q curve：
DC Brushless Blower Advantage
(1) WS7040-24-V200 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 20,000 hours at 20 degree C environmental temperature.
(2) This blower needs no maintence
(3) This blower drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily.
(4) Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.
Applications
This blower can be widely used onto air cushion machine, CPAP machine, SMD soldering rework station.
How to Use the Blower Correctly
FAQ
Q: What we can do if the working condition is dirty?
A: A filter is strongly recommended to assemble onto the the inlet of the blower fan
Q: How to decrease the noise of the blower?
A: Many of our customers use foam, silicone to fill between blower fan and machine to insulate the blower noise.
