Large air flow cooling blower

9kpa 48V large air flow cooling blower

Suitable for air cushion machine/fuel cell/cooling machine

  • Model: WS140110CS-48-150-X300
  • Product Detail

    Product Tags

    Blower Features

    Brand name: Wonsmart

    High pressure with dc brushless motor

    Blower type: Centrifugal fan

    Voltage: 48vdc

    Bearing: NMB ball bearing

    Applicable Industries: Manufacturing Plant

    Electric Current Type: DC

    Blade Material: plastic

    Mounting: Ceiling Fan

    Place of Origin:Zhejiang, China

    Certification: ce, RoHS

    Warranty: 1 Year

    After-sales Service Provided: Online support

    Life time(MTTF): >20,000hours (under 25 degree C)

    Weight: 1.5 Kgs

    Housing material:PC

    Motor type:Three Phase DC Brushless Motor


    Static pressure: 9kPa

    1 (1)
    1 (2)

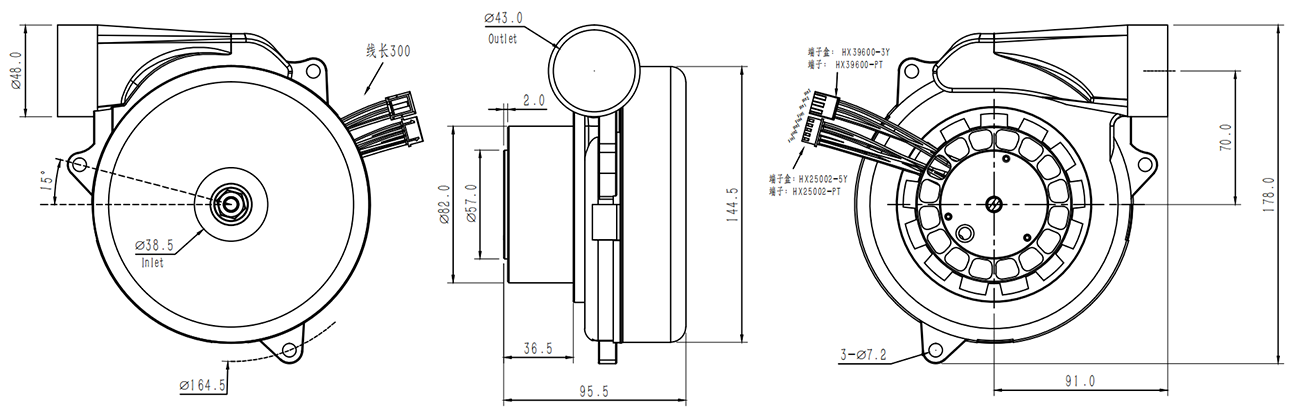

    WS140110CS-48-150-X300-Model_00 (2)

    Blower Performance

    WS140110CS-48-150-X300 blower can reach maximum 96m3/h airflow at 0 kpa pressure and maximum 9kpa static pressure.It has maximum output air power when this blower run at 4kPa resistance if we set 100% PWM, It has maximum efficiency when this blower run at 4kPa resistance if we set 100% PWM.Other load point performance refer to below P-Q curve:


    DC Brushless Blower Advantage

    (1) WS140110CS-48-150-X300 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 25,000hours at 20degree C environmental temperature

    (2) This blower needs no maintence

    (3) This blower drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily.

    (4) Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.


    This blower can be widely used onto vacuum machine,dust collector,floor treatment machine.

    How to Use the Blower Correctly



    Q: Do you also sell controller board for large air flow cooling blower?

    A: Yes, we can supply adapted controller board for this blower fan.

    Q: How to change impeller speed if we use your controller board?

    A: You can use 0~5v or PWM to change speed. Our standard controller board is also with a potentiometer to change speed conveniently.


    DC machines are defined as follows:

         ● Armature circuit – A winding where the load current is carried, such that can be either stationary or rotating part of motor or generator.

         ● Field circuit – A set of windings that produces a magnetic field so that the electromagnetic induction can take place in electric machines.

         ● Commutation: A mechanical technique in which rectification can be achieved, or from which DC can be derived, in DC machines.

    A: shunt B: series C: compound f = field coil

    There are five types of brushed DC motor:

         ● DC shunt-wound motor

         ● DC series-wound motor

         ● DC compound motor (two configurations):

    Cumulative compound

    Differentially compounded

         ● PM DC motor (not shown)

         ● Separately excited (not shown).
