24V Brushless High Pressure Centrifugal Mini Industrial Blower
High Pressure 24VDC Turbine Blower
1. Core Performance
- Power Supply and Drive: The rated voltage is 24VDC, and it is recommended to be matched with the driver WS4820ZX01V01-SRP039 to ensure stable operation.
- Parameters Under Multiple Working Conditions:
- When the air outlet is fully open: Speed 41000RPM±5%, Current 3.7A±15%, Air Flow 165L/min±10%;
- When the air outlet is fully closed (At Static Pressure): Speed 36500RPM±5%, Current 7.2A±20%, Air Pressure 28.0Kpa±10%;
- At rated working point: Speed 39000RPM±3%, Current 5.1A±20%, Air Pressure 12.0Kpa, Air Flow 104L/min±10%.
2. Structure and Installation
- Dimensional Accuracy: Key dimensions include 400±20mm, 95.5±1.5mm, 65±0.30mm, etc., with strict error control; it is equipped with an 8±0.2mm air inlet (Air Inlet) and air outlet (Air Outlet), and the cable output position/angle is not fixed, adapting to various wiring requirements.
- Wiring Specification: For the 400mm-length cable, the corresponding wiring sequence is Pin 1 White (Phase W), Pin 2 Blue (Phase V), Pin 3 Yellow (Phase U).
3. Environment and Safety
- Environmental Resistance: Operating temperature ranges from -20℃ to +40℃ (Forced cooling), storage temperature ranges from -30℃ to +70℃, and the humidity is ≤90%RH without condensation in both cases;
- Safety Note: When operating in the red zone, a cooling fan is required to prevent equipment damage due to overload.
Product Introduction
| Part no | WS9070A-24-S400 |
| Voltage | 24VDC |
| At max airflow | |
| Speed | 41000rpm |
| Current | 3.7a |
| Air flow | 165lpm |
| At max air pressure | |
| Speed | 36500rpm |
| Current | 7.2a |
| Air pressure | 28.0kpa |
|
Operating environmental
temperature humidity
|
-20℃~+40℃(Forced cooling)
≤90%RH
without condensation
|
|
Storage temperature humidity
|
-30℃~+70℃
≤90%RH
without condensation
|

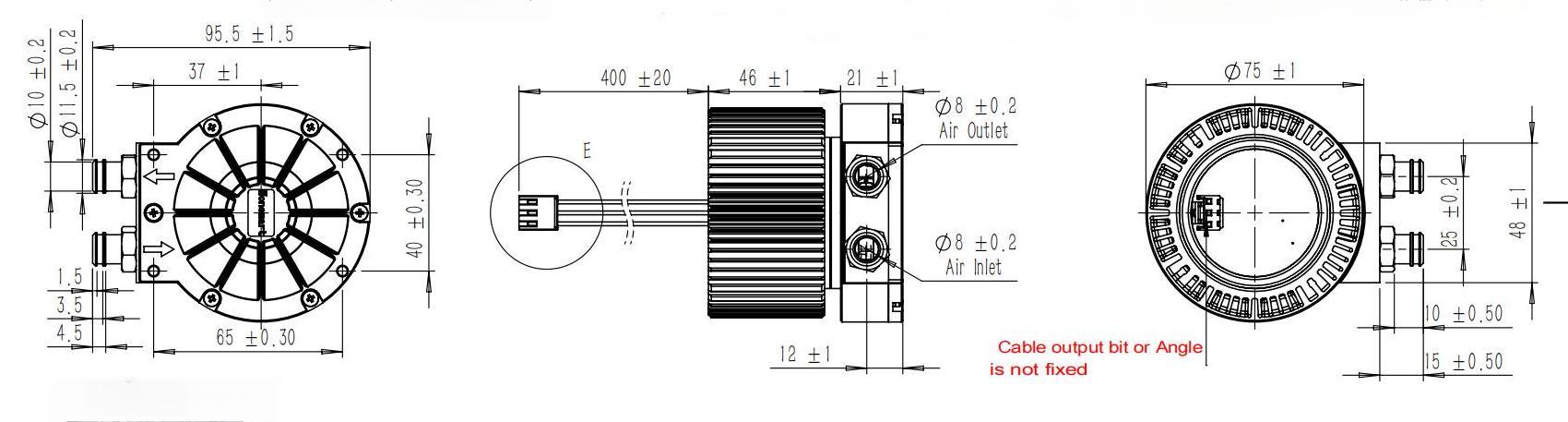

Drawing
Tips:
Outlet size:φ8mm
Inlet size:φ8 mm
Blower Performance

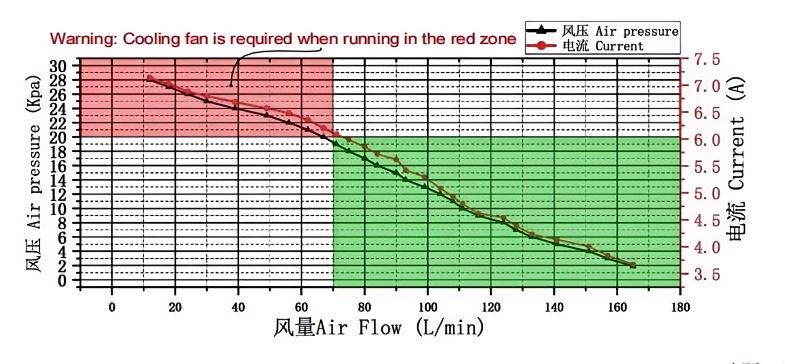

WS9070A-24-S400 blower can reach maximum 165lpm airflow at 0 kpa pressure and maximum 28kpa static pressure.Other load point performance refer to below P-Q curve：
| @At Free Blowing | ||
| Speed | Current | Air flow |
| 41000rpm | 3.7a | 165l/min |
| @At Working Point | |||
| Speed | Current | Air flow | Air pressure |
| 39000rpm | 5.1a | 104l/min | 12.0kpa |
| @At Static Pressure | ||
| Speed | Current | Air pressure |
| 36500rpm | 7.2a | 28.0kpa |
